When shopping for a mini PC, there’s a lot to look for. The CPU is a big part of the equation and one of the first things I look at, but not the most important. A A powerful CPU is greatbut even if the latest and greatest from both Intel and AMD have the best performance, they don’t always have the most PCIe lanes. The biggest differentiator among mini PCs now is expandability, and one of the things that has bothered me in the past is being ignored. Number of PCIe lanes— the lifeblood of mini PC expandability.
Memory expansion is the main problem
The second driver can immediately put a damper on everything

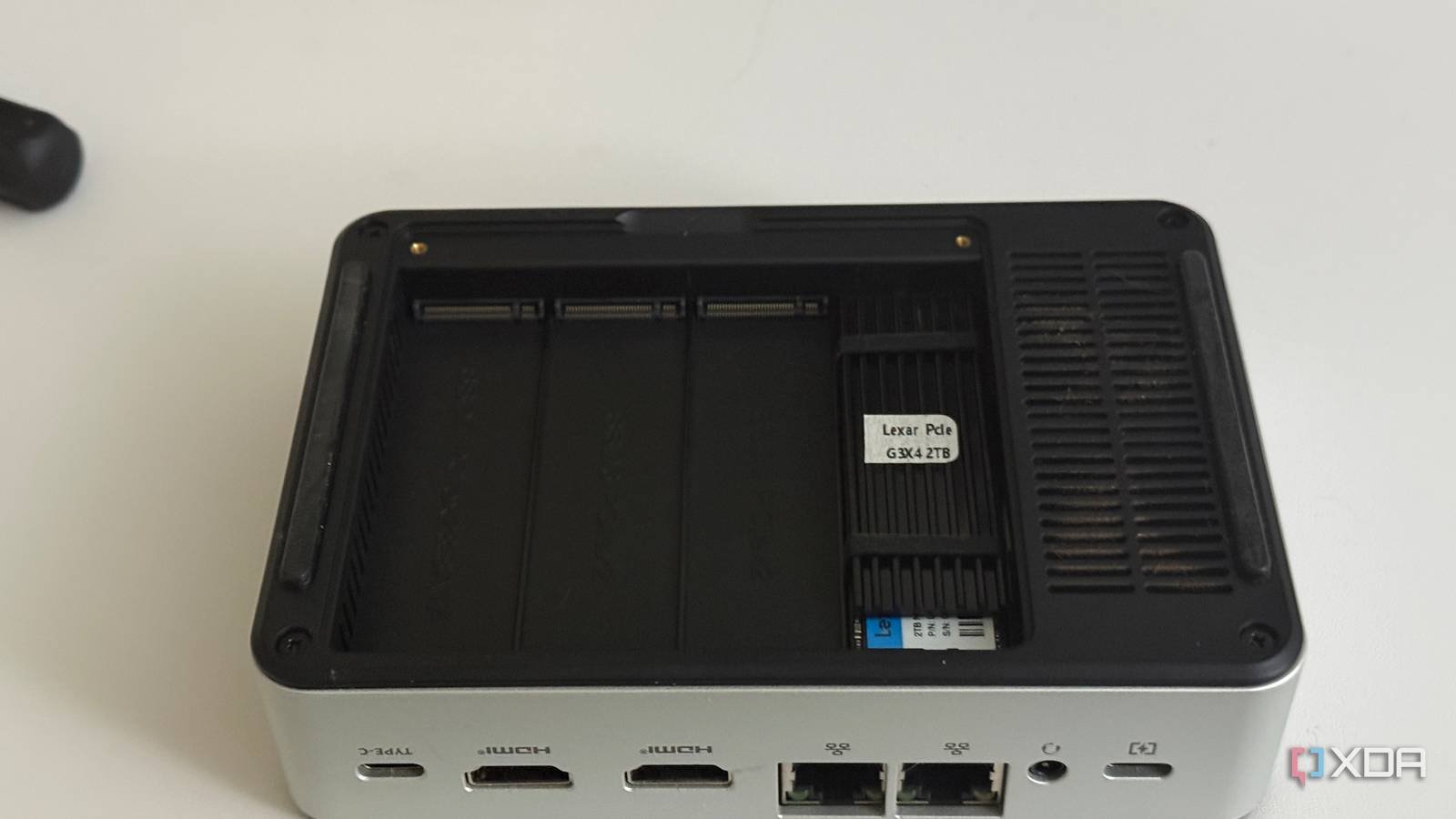

CPU power is great, but the moment you add a second NVMe drive to your mini PC, you’ll want to pay more attention to the number of PCIe lanes. Most hobbyist-level mini PCs advertise two M.2 slots, and most hobbyists assume that means two equivalent slots, which is rarely the case.
In many mid-range boxes, the second M.2 slot runs on PCIe 3.0 x2, sometimes x1, and sometimes it goes through the chipset to share bandwidth with the first slot. Fill that second slot and your main drive will drop from a full x4 link to x2. For desktop use this isn’t significant, but the impact is noticeable for home lab use where you might be running ZFS mirrors or more memory-intensive Proxmox VMs.
As you start adding more PCIe devices beyond just memory, the number of lanes can be significant for the performance of other devices.
If the number of lanes is high, upgrades to other PCIe devices suffer
The difference is significant
Let’s say you’ve filled both M.2 slots and now want to add an external GPU for Jellyfin transcoding via Oculink and the occasional native LLM workload. On paper, this is a neat upgrade, but in practice you may find that using an external GPU takes lanes away from one of your M.2 slots, leaving the secondary memory for slower switching, or even disabling it altogether. Some platforms handle this gracefully through BIOS-level striping configuration, but others degrade performance without saying anything.
The same scenario occurs when you install virtually anything else that uses PCIe lanes. The same applies if you used your second M.2 slot to add a 10GbE NIC but that slot is no longer available for storage, or if you used it for an HBA to run multiple SATA drives in a home lab NAS setup. Every adapter you add is a lane allocation decision that blocks another upgrade path. In a desktop PC with a full ATX board and 20+ usable lanes, this is rarely a real limitation, but with a mini PC it is a major concern. After the platform uses up lanes on the onboard NICs, USB controllers, and chipset uplink, you’re likely to have at least eight usable lanes left. has taken its share. It’s not really enough for meaningful expansion.
The CPU is not upgradeable, so it’s important to choose wisely
It’s not something to be completely ignored
The floor on Mini PC CPUs has risen so dramatically that the differences between tiers are less significant than before, but it’s still not something to completely ignore. They’re also soldered components, meaning you won’t be able to upgrade them in the future. What you see is what you get, so if horsepower is your main concern, it’s worth sacrificing some expansion.
Bands also go hand-in-hand with processor choice to some degree, but CPU generation is more important than which one you choose in the product stack. For example, the Intel N100, N150, and N305 chips only open up nine PCIe 3.0 lanes, while newer Ultra Mobile chips give you about 20 lanes.
The amount of bandwidth does not always follow the generation. For example, an AMD Ryzen 7 8845HS or 8945HS has 20 potential lanes, but the newer Strix Halo has 16 lanes, with more raw computing.
PCIe lanes are the defining feature of what your mini PC can be
It’s tempting to treat a Mini PC purchase like you would any other computer purchase: pick the chip you want, find a box that fits your budget, and be done with it. Indeed, you can behave this way, but ignoring the PCIe lanes seriously ties your hands in terms of expansion. cpu, RAMand integrated I/O dictates what the system can do now, but PCIe expansion dictates what it can do in the future.
